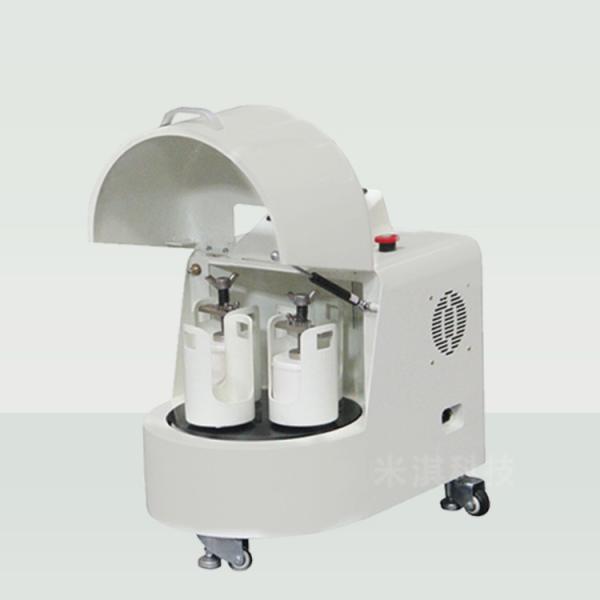

Micron Powder Planetary Ball Mill 0.4l Laboratory Pulverizer Desktop Type
Application:
It is widely used Pearl, ginseng, Dendrobium candidum, tablets, medicament, liquorice, coke, coal, glass, cellulose, paper, chip, polymer, pigment, metal oxide, iron ore, iron powder, aluminum powder, magnesium powder, ceramics, Alumina, bone, kaolin, Limestone, gypsum, quartz, minerals, ores, carbonized fibres, graphite, ink, clay minerals, fibre products, sewage sludge, catalysts, chemicals, alloys, soils, waste samples, wood, plant materials, Cement slag, concrete, slag, tobacco.
Feature:
1. Oil seal mute technology and gear drive core technology,noise reduced by 50%,increase service life more than 2 times
2. innovative design, beautiful and humanized apperance;
3. high resolution ratio touch screen, simpler and more efficient;
4. Compact structure, light weight, space saving;
5. For working station, 4 different kinds of material can be grinded at the same time;
6. Can rotate clockwise and unticlockwise alternatively, stepless speed regulation, setting time, safety protection, power off memory, data storage and so on.

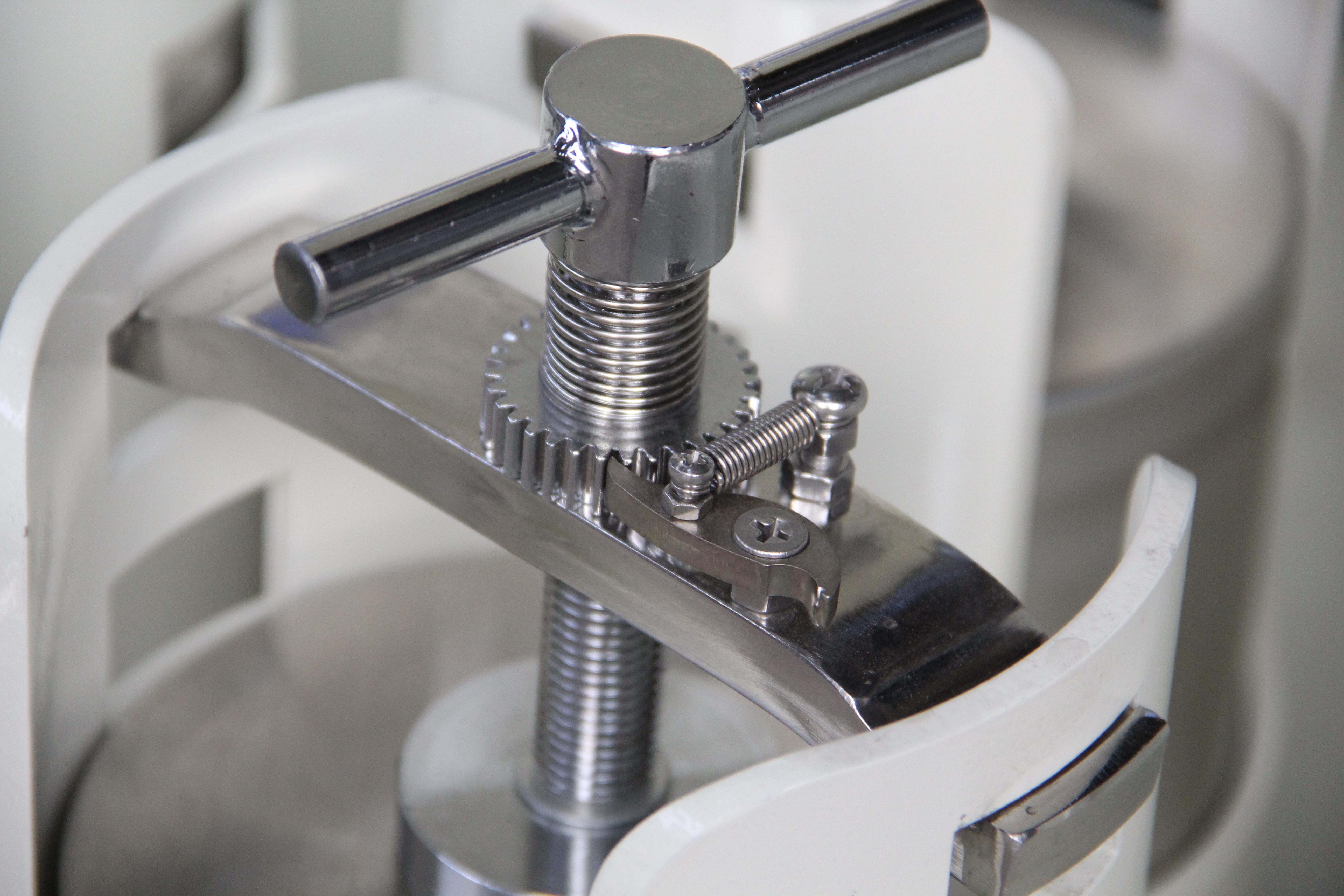

7. Safety gear lock, easy to install and disassemble, easy to loosen, safe and reliable, simple and easy to use, delicate design and beautiful shape.
8.When carrying, there are universal wheels to push and run;When operating, there are universal supporting feet for stable.
Details:
There are three series of planetary ball mill: Vertical ball mill; Horizontal ball mill;Full direction ball mill
Technical parameter:
| Model | Spec | With ball mill jar | Remarks |
| | | Spec(ml) | Quantities | |
| YXQM-0.4L | 0.4L | 50-100ml | 2 or 4 | With 50ml vacuum ball mill jar |
| YXQM-1L | 1L | 50-250ml | 2 or 4 | With 50-100ml vacuum ball mill jar |
| YXQM-2L | 2L | 50-500ml | 2 or 4 | With 50-250ml vacuum ball mill jar |
| YXQM-4L | 4L | 50-1000ml | 2 or 4 | With100-500ml vacuum ball mill jar |
| YXQM-8L | 8L | 500-2000ml | 2 or 4 | With250-1000ml vacuum ball mill jar |
| YXQM-10L | 10L | 500ml-2.5L | 2 or 4 | With 250-2.5L vacuum ball mill jar |
| YXQM-12L | 12L | 1L-3L | 2 or 4 | With 500-3L vacuum ball mill jar |
| YXQM-16 | 16L | 1L-4L | 2 or 4 | With 500-4L vacuum ball mill jar |
| YXQM-20L | 20L | 1L-5L | 2 or 4 | With 1000-5L vacuum ball mill jar |
| YXQM-40L | 40L | 4L-10L | 2 or 4 | With 3L-10L vacuum ball mill jar |
| YXQM-60L | 60L | 6L-15L | 2 or 4 | With 5L-15L vacuum ball mill jar |
| YXQM-80L | 80L | 6L-20L | 2 or 4 | With 5L-20L vacuum ball mill jar |
| YXQM-100L | 100L | 10L-25L | 2 or 4 | With 9L-25L vacuum ball mill jar |
| Model | Voltage | Motor power(KW) | Inverter power KW | Total timing (min) | Alternating Run Time | Rotation speed r/min | Noise ≤db |
| Revolution speed | Rotation speed |
| YXQM0.4L | 220V 50HZ | 0.55 | 0.55 | 1-9999 | 1-9999 | 5-450 | 10-900 | <50db |
| YXQM1L | 220V 50HZ | 0.55 | 0.55 | 1-9999 | 1-9999 | 5-450 | 10-900 | <50db |
| YXQM2L | 220V 50HZ | 0.75 | 0.75 | 1-9999 | 1-9999 | 5-400 | 10-800 | <50db |
| YXQM4L | 220V 50HZ | 0.75 | 0.75 | 1-9999 | 1-9999 | 5-400 | 10-800 | <50db |
| YXQM8L | 220V 50HZ | 1.5 | 1.5 | 1-9999 | 1-9999 | 5-320 | 10-640 | <58db |
| YXQM10L | 220V 50HZ | 1.5 | 1.5 | 1-9999 | 1-9999 | 5-320 | 10-640 | <58db |
| YXQM12L | 380V 50HZ | 1.5 | 2.2 | 1-9999 | 1-9999 | 5-320 | 10-640 | <58db |
| YXQM16L | 380V 50HZ | 2.2 | 2.2 | 1-9999 | 1-9999 | 5-280 | 10-560 | <58db |
| YXQM20L | 380V 50HZ | 3.0 | 3.7 | 1-9999 | 1-9999 | 5-230 | 10-460 | <60db |
| YXQM40L | 380V 50HZ | 5.5 | 7.5 | 1-9999 | 1-9999 | 5-220 | 10-440 | <63db |
| YXQM60L | 380V 50HZ | 7.5 | 7.5 | 1-9999 | 1-9999 | 5-180 | 10-360 | <65db |
| YXQM80L | 380V 50HZ | 7.5 | 11 | 1-9999 | 1-9999 | 5-180 | 10-360 | <65db |
| YXQM100L | 380V 50HZ | 11 | 11 | 1-9999 | 1-9999 | 5-180 | 10-360 | <68db |
Ball Mill Jars And Ball Mill Grinding Media
Our factory can provide 304 stainless steel jar,Tungsten carbide jar(YG8),ceramic jar,alumina jar,zirconia jar,agate jar.Nylon jar, Polyurethane jar, PTFE jar.we can also provide grinding media stainless steel,ceramic,corundum,alumina,zirconia,agate,tungsten carbide.
