1.Main application
The products are mainly used in the fields of electronic ceramics, structural ceramics, magnetic materials, catalysts, biology, medicine, metallurgy, ceramics, lithium batteries, new materials, etc.
2.Operation principle
Planetary Ball Mill has four ball grinding jars installed on one turntable. When the turntable rotates, the jar axis makes planetary movements that the ball mill jar revolution around the axis of the rotary disc and at the same time it rotation around its axis. The balls and samples inside the jars are impacted strongly in high speed movement, and samples are eventually ground into powder. Various kinds of different materials can be ground by the mill with dry or wet method. Minimum granularity of ground powder can be as small as 0.1μm(1.0*10mm-4).
Working mode: Two or four ball milling jars working at the same time and the maximum sample loading amount: Volume of ball milling jar 2/3, feeding granularity: soil material ≤ 10mm other material ≤ 3mm discharge granularity: the minimum can up to 0.1um (i.e. 1.0 *10mm-4).
3.Technical parameters of planetary ball mill
| Model |
Power |
Voltage KW |
Frequency conversion power KW |
Ball mill jar |
Vacuum jar |
Rotation Speed r/min |
Noise≤db(A) |
| Revolution (adjustable) |
Rotation(adjustable) |
| YXQM-0.4L |
220V 50HZ |
0.55 |
0.4 |
100ml |
- |
30-450 |
60-900 |
<60db |
| YXQM-1L |
220V 50HZ |
0.75 |
0.55 |
250ml |
100ml |
30-450 |
60-900 |
<60db |
| YXQM-2L |
220V 50HZ |
1.1 |
0.75 |
500ml |
250ml |
30-400 |
60-800 |
<60db |
| YXQM-4L |
220V 50HZ |
1.1 |
0.75 |
1000ml |
500ml |
30-400 |
60-800 |
<60db |
| YXQM-8L |
220V 50HZ |
1.5 |
1.5 |
2L |
2L |
30-280 |
60-560 |
<60db |
| YXQM-12L |
380V 50HZ |
1.5 |
2.2 |
3L |
3L |
30-260 |
60-520 |
<60db |
| YXQM-16L |
380V 50HZ |
3.0 |
4 |
4L |
4L |
30-230 |
60-460 |
<60db |
| YXQM-20L |
380V 50HZ |
3.0 |
4 |
5L |
5L |
30-230 |
60-460 |
<60db |
| YXQM-40L |
380V 50HZ |
3.0 |
4 |
10L |
10L |
30-180 |
60-360 |
<90db |
| YXQM-60L |
380V 50HZ |
4.0 |
5.5 |
15L |
15L |
30-170 |
60-340 |
<90db |
| YXQM-80L |
380V 50HZ |
7.5 |
7.5 |
20L |
20L |
30-160 |
60-320 |
<90db |
| YXQM-100L |
380V 50HZ |
11 |
11 |
25L |
25L |
30-160 |
60-320 |
<90db |
Product Tags:
|
|

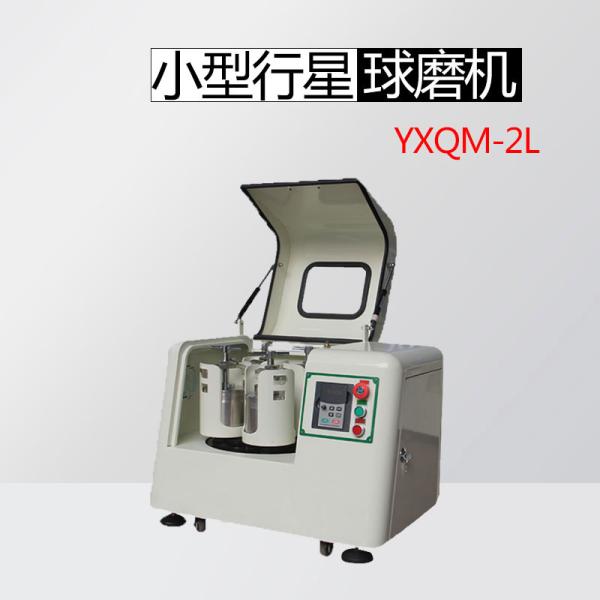

Lab Ball Mill With Vacuum Stainless Steel Jar Images
|
